Xbox Live Web Authentication

XboxLiveAPI.php

<?php

declare(strict_types=1);

final class XboxLiveAPI{

	private static function parseJsonResponse(string $response) : array{
		$data = json_decode($response, true);
		if(isset($data["error"])){
			throw new ErrorException("{$data["error"]}: {$data["error_description"]}");
		}
		return $data;
	}

	/** @var string */
	private $client_id;

	/** @var string */
	private $client_secret;

	/** @var string */
	private $redirect_uri;

	/** @var string */
	private $locale;

	public function __construct(string $client_id, string $client_secret, string $redirect_uri, string $locale = "en-US"){
		$this->client_id = $client_id;
		$this->client_secret = $client_secret;
		$this->redirect_uri = $redirect_uri;
		$this->locale = $locale;
	}

	public function getRequestUrl() : string{
		return "https://login.live.com/oauth20_authorize.srf?" . http_build_query([
			"client_id" => $this->client_id,
			"scope" => "XboxLive.signin",
			"response_type" => "code",
			"redirect_uri" => $this->redirect_uri,
			"locale" => $this->locale
		]);
	}

	/**
	 * Client is redirected to request_uri?code=code after they log in
	 * via getRequestUrl().
	 *
	 * @param string $code
	 * @return array<string, mixed>
	 */
	public function getAccessTokenInfo(string $code) : array{
		$curl = curl_init("https://login.microsoftonline.com/consumers/oauth2/v2.0/token");
		curl_setopt($curl, CURLOPT_HTTPHEADER, ['Content-Type: application/x-www-form-urlencoded']);
		curl_setopt($curl, CURLOPT_POSTFIELDS, http_build_query([
			"grant_type" => "authorization_code",
			"code" => $code,
			"client_id" => $this->client_id,
			"scope" => "XboxLive.signin",
			"redirect_uri" => $this->redirect_uri,
			"client_secret" => $this->client_secret
		]));
		curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

		$result = curl_exec($curl);
		curl_close($curl);

		if($result !== false){
			return self::parseJsonResponse($result);
		}

		throw new RuntimeException("Failed to retrieve a response from Microsoft");
	}

	/**
	 * Access token can be retrieved from getAccessTokenInfo() (key = "access_token").
	 *
	 * @param string $access_token
	 * @return array<string, mixed>
	 * @throws ErrorException
	 */
	public function getAuthenticationInfo(string $access_token) : array{
		$payload = json_encode([
			"RelyingParty" => "http://auth.xboxlive.com",
			"TokenType" => "JWT",
			"Properties" => [
				"AuthMethod" => "RPS",
				"SiteName" => "user.auth.xboxlive.com",
				"RpsTicket" => "d=" . $access_token,
			]
		]);

		$curl = curl_init("https://user.auth.xboxlive.com/user/authenticate");
		curl_setopt($curl, CURLOPT_HTTPHEADER, [
			'Content-Type: application/json',
			'Content-Length: ' . strlen($payload)
		]);
		curl_setopt($curl, CURLOPT_POSTFIELDS, $payload);
		curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

		$result = curl_exec($curl);
		curl_close($curl);

		if($result !== false){
			return self::parseJsonResponse($result);
		}

		throw new RuntimeException("Failed to retrieve a response from Xbox Live Authentication host");
	}

	/**
	 * User token can be retrieved from getAuthenticationInfo() (key = "Token").
	 *
	 * @param string $user_token
	 * @return array
	 */
	public function getAuthorizationInfo(string $user_token) : array{
		$payload = json_encode([
			"RelyingParty" => "http://xboxlive.com",
			"TokenType" => "JWT",
			"Properties" => [
				"UserTokens" => [$user_token],
				"SandboxId" => "RETAIL"
			]
		]);

		$curl = curl_init("https://xsts.auth.xboxlive.com/xsts/authorize");
		curl_setopt($curl, CURLOPT_HTTPHEADER, [
			'Content-Type: application/json',
			'Content-Length: ' . strlen($payload)
		]);
		curl_setopt($curl, CURLOPT_POSTFIELDS, $payload);
		curl_setopt($curl, CURLOPT_RETURNTRANSFER, true);

		$result = curl_exec($curl);
		curl_close($curl);

		if($result !== false){
			return self::parseJsonResponse($result);
		}

		throw new RuntimeException("Failed to retrieve a response from Xbox Live Xbox Live Authorization host");
	}
}

Retrieving Client ID

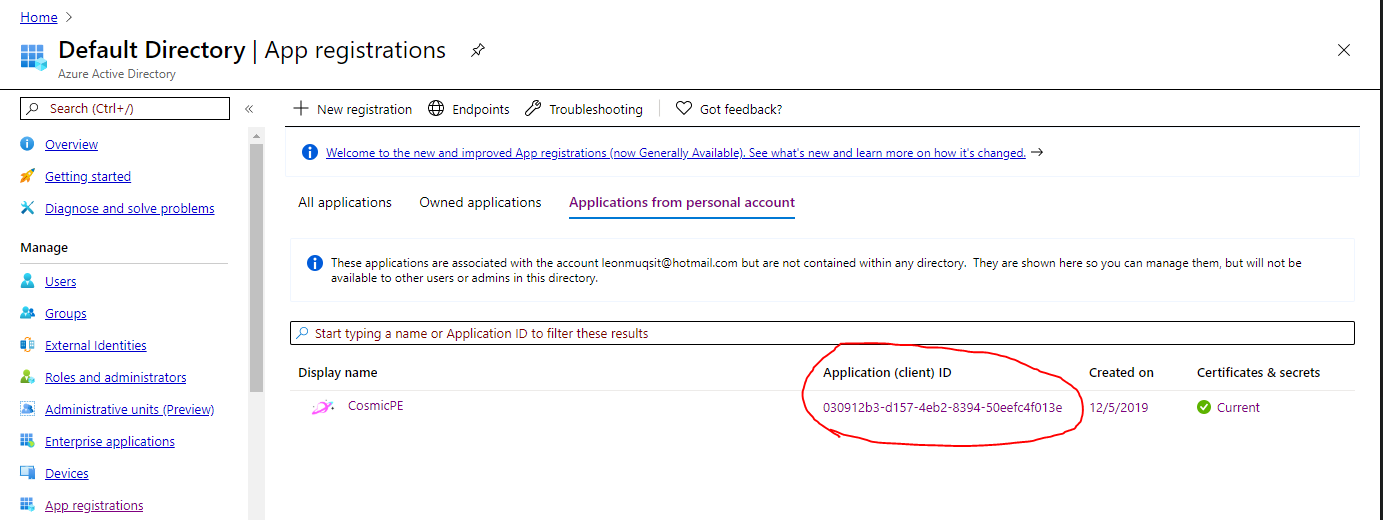

Register an azure application at https://portal.azure.com/#blade/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/RegisteredApps.

Retrieving Client Secret

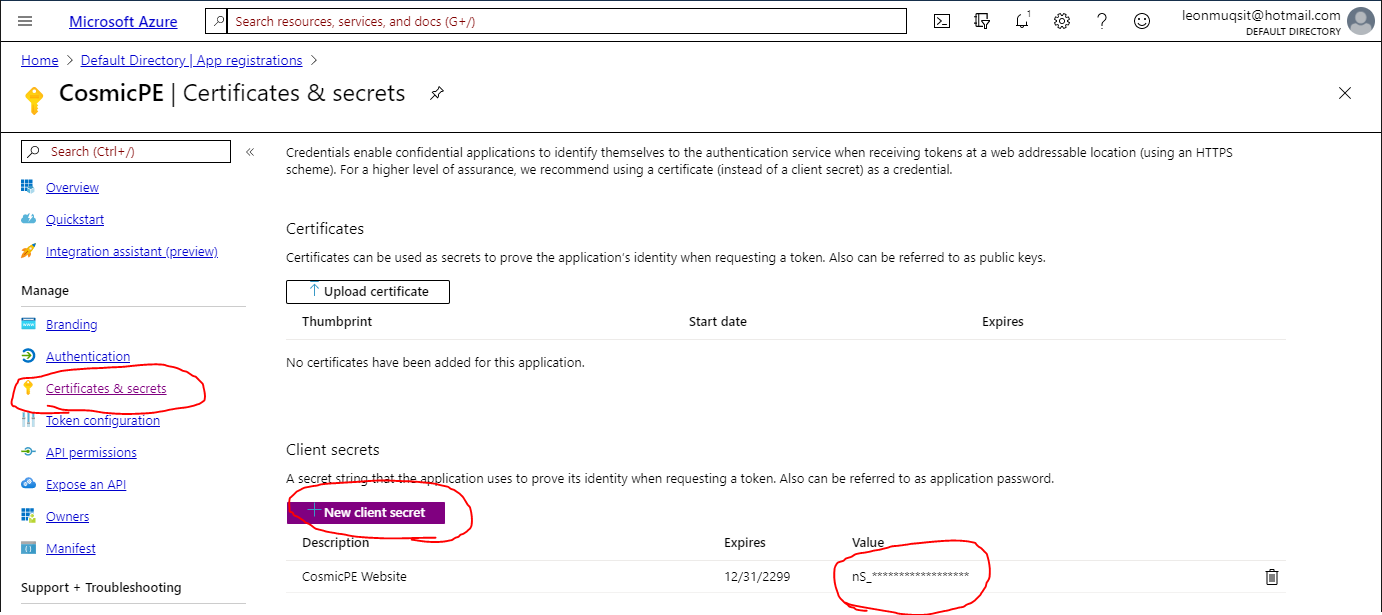

In your application, head over to Certificates & Secrets tab and click + New client secret.

Setting up Redirect URI

In your application, head over to Authentication tab and click + Add a platform.

Select Web and you will be asked to input Redirect URIs.

Fetching code from client login

Redirect client to XboxLiveAPI::getRequestUrl(). The client will be asked to sign in to their microsoft account. Once they do, they'll be redirected to $redirect_uri?code=code.

<?php
/**
 * @var string $client_id
 * @var string $client_secret
 * @var string $redirect_uri
 */
$api = new XboxLiveAPI($client_id, $client_secret, $redirect_uri);
?>
<html>
	<body>
		<a href="<?php echo $api->getRequestUrl(); ?>">Sign-In with Xbox Live</a>
	</body>
</html>

In the redirect_uri:

$code = $_GET["code"];

Fetching Xbox User ID from code

/**
 * @var string $client_id
 * @var string $client_secret
 * @var string $redirect_uri
 * @var string $code
 */
$api = new XboxLiveAPI($client_id, $client_secret, $redirect_uri);

$access_token_info = $api->getAccessTokenInfo($code);
$authentication_info = $api->getAuthenticationInfo($access_token_info["access_token"]);
$authorization_info = $api->getAuthorizationInfo($authentication_info["Token"]);

$xuid = $authorization_info["DisplayClaims"]["xui"][0]["xid"];
