Install ASP.Net Core 3.1 app in ubuntu 20.04

Install ASP.Net Core 3.1 app in ubuntu 20.04.md

Install ASP.Net Core 3.1 app in ubuntu 20.04

1. Update system-

sudo apt update -y        # Fetches the list of available updates
sudo apt upgrade -y       # Installs some updates; does not remove packages
sudo apt full-upgrade -y  # Installs updates; may also remove some packages, if needed
sudo apt autoremove -y    # Removes any old packages that are no longer needed

#sudo do-release-upgrade -y  # If need to upgrade to latest 20.04 version  -> Do not do it

2. Create a new user for management-

sudo adduser <UserNameHere> #Adding a User with password
  # sudo adduser abrar
sudo groups <SudoUserGroupHere> #Granting a User Sudo Privileges
  # sudo groups abrar
sudo usermod -aG <SudoUserGroupHere> <UserNameHere>
  # sudo usermod -aG abrar abrar
sudo adduser <UserNameHere> sudo  # Added the user into sudo group
  # sudo adduser abrar sudo

then logout and login with the new username-

exit
ssh abrar@<ip>

3. Install required packages-

sudo apt-get install nano net-tools git wget -y

4. Add ASP.Net core packages into libraries-

sudo wget https://packages.microsoft.com/config/ubuntu/20.04/packages-microsoft-prod.deb -O packages-microsoft-prod.deb
sudo dpkg -i packages-microsoft-prod.deb
sudo rm -rf packages-microsoft-prod.deb
sudo add-apt-repository universe -y
sudo apt-get update -y
sudo apt-get install apt-transport-https
sudo apt-get update -y

5. Install Dotnet Core 3.1-

sudo apt-get install dotnet-sdk-3.1 aspnetcore-runtime-3.1 dotnet-runtime-3.1 supervisor -y
dotnet tool install --global dotnet-ef --version 3.*

6. Try a 'Hello World' Web App-

cd ~
dotnet new web --name MyWebApp
cd ~/MyWebApp
sudo dotnet run --urls "http://*:80;https://*:443"

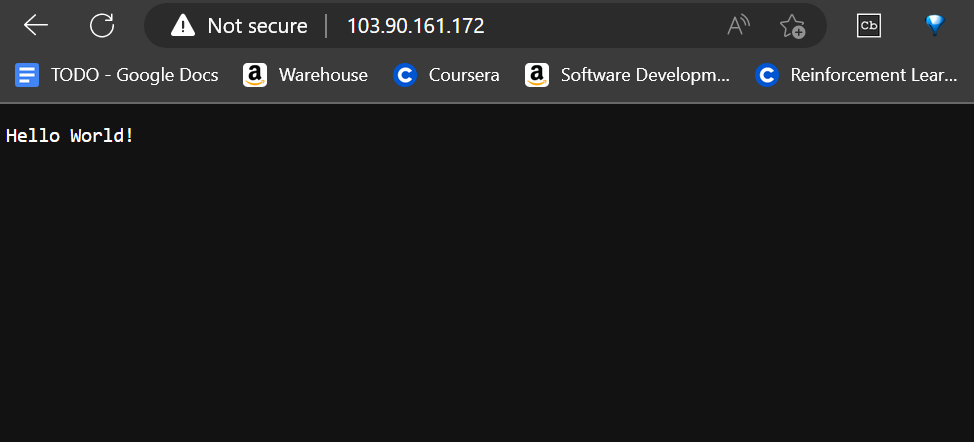

Then try with browser with the server IP-

http://<server_ip>:80

If it runs, then you are good with the ASP.Net Core installation.

7. Build the executables/ Publish-

cd MyWebApp/
dotnet publish -c Release -o ~/PublishedWebApp
cd ~

Running the code from the deployment-

cd ~/PublishedWebApp/
sudo dotnet MyWebApp.dll --urls "http://*:80;https://*:443"

Configure with Supervisor-

1. Check version- supervisord -v

2. Commands-

systemctl status supervisor       # Check status
sudo supervisorctl reread         # Read all configs including newly added ones
sudo systemctl restart supervisor # Restart Supervisor
sudo systemctl stop supervisor   # stop supervisor server
sudo systemctl start supervisor   # start Supervisor

3. Enable Supervisor Web Interface (if needed)-

nano /etc/supervisor/supervisord.conf

Then add the following lines-

[inet_http_server]
port=*:9001
username=admin
password=admin

Then service restart with this command- sudo systemctl restart supervisor

4. Add supervisor config-

sudo systemctl stop supervisord
cd /etc/supervisor/conf.d/
sudo vim <app_name>.conf
  # sudo vim xml-sign-asp.conf

Then add the config to run the application-

[program:xml-sign-asp]
command=dotnet "MyWebApp.dll" --urls "http://*:80;https://*:443"
directory=/home/abrar/PublishedWebApp/
environment=ASPNETCORE__ENVIRONMENT=Development
user=root
stopsignal=INT
autostart=true
autorestart=true
startsecs=1
stderr_logfile=/var/log/xml_sign_asp.err.log
stdout_logfile=/var/log/xml_sign_asp.out.log

environment=ASPNETCORE__ENVIRONMENT=Development can be Production or DOTNET_CLI_HOME=/temp as well depending on demand.

Then reread supervisor and restart-

sudo supervisorctl reread
sudo systemctl start supervisor
# or sudo systemctl restart supervisor

And then try if everything works by going to the browser.

Update Code with deployment-

1. Update Code or download new code-

cd ~/code
git pull
cd ~

2. Stop Service

sudo systemctl stop supervisor
systemctl status supervisor

3. Save the database (if needed). Move the database to up.

cp ~/PublishedWebApp/Data/App.db ~/App.db

4. Delete Previous Build-

sudo rm -rf ~/PublishedWebApp

5. Generate New Production-

cd ~/code
dotnet publish -c Release -o ~/PublishedWebApp
cd ~
# Copy the database as well
mkdir ~/PublishedWebApp/Data
mv ~/App.db ~/PublishedWebApp/Data/App.db

chmod -R o+rw ~/PublishedWebApp

6. Run The Server and test in browser-

sudo systemctl start supervisor
sudo systemctl status supervisor

Say URL for the browser is this.

If any error occured, then read the log file like this-

tail -f /var/log/xml_sign_asp.err.log
tail -f /var/log/xml_sign_asp.out.log

7. If Need to run migration in Linux server, then-

dotnet tool install --global dotnet-ef --version 3.*
dotnet-ef database update

And then move the database file where it need to move.

If any permission issue-

chmod -R o+rw ~/PublishedWebApp
chmod -R 777 ~/PublishedWebApp

All update in 1 line command-

cd ~/code && git pull && cd ~ && sudo systemctl stop supervisor && cd ~/code && dotnet publish -c Release -o ~/PublishedWebApp && cd ~ && sudo chmod -R o+rw ~/PublishedWebApp && sudo systemctl start supervisor && tail -f /var/log/xml_sign_asp.out.log
